Turbocharger Research

Performance and efficiency of today's generation of turbocharger scrolls can be improved by a better understanding of flow phenomenon inside the volute, around the tongue and other high energy areas in such configurations.  Described below is a summary of the research conducted by Dr. Meron Lavy (Mehran Moheban) in the are of radial flow turbomachines.

Numerical Analyses

A finite volume time-marching numerical method was used to develop the CFD code for the simulation of flows in turbocharger volutes. The solution initially  implemented was for inviscid flow, based on the well known Denton methodology. The program is suitable for both single- and twin-entry flow configurations. By applying empirical pressure variations at scroll's exit it was possible to model rotor-scroll interactions.  This technique was further developed to deal with 3D quasi-viscous flows in radial turbines. In this scheme the viscosity terms are included by means of shear stress terms in the flow equations. A rather simplified energy equation is used in the solution and in  this way the computational effort is kept to a minimum.

Experimental  Research

Dr. Lavy has extensive experience in the field of experimental techniques for turbomachines. With emphasis on radial flow turbines, a facility was designed and developed to study flows in vaneless volutes. A traverser mechanism was using hot-wires was implemented to measure pressures, velocities and flow angles in scroll volutes. These tests were conducted on different turbocharger vane shapes to investigate their performance.  A laser-two-focus system was first introduced as a non-intrusive way of measuring flow parameters inside turbochargers. These experimental rigs, tests and their results are available at Imperial College London University.

For more information please see references or contact or info(at)technoenterprises.com

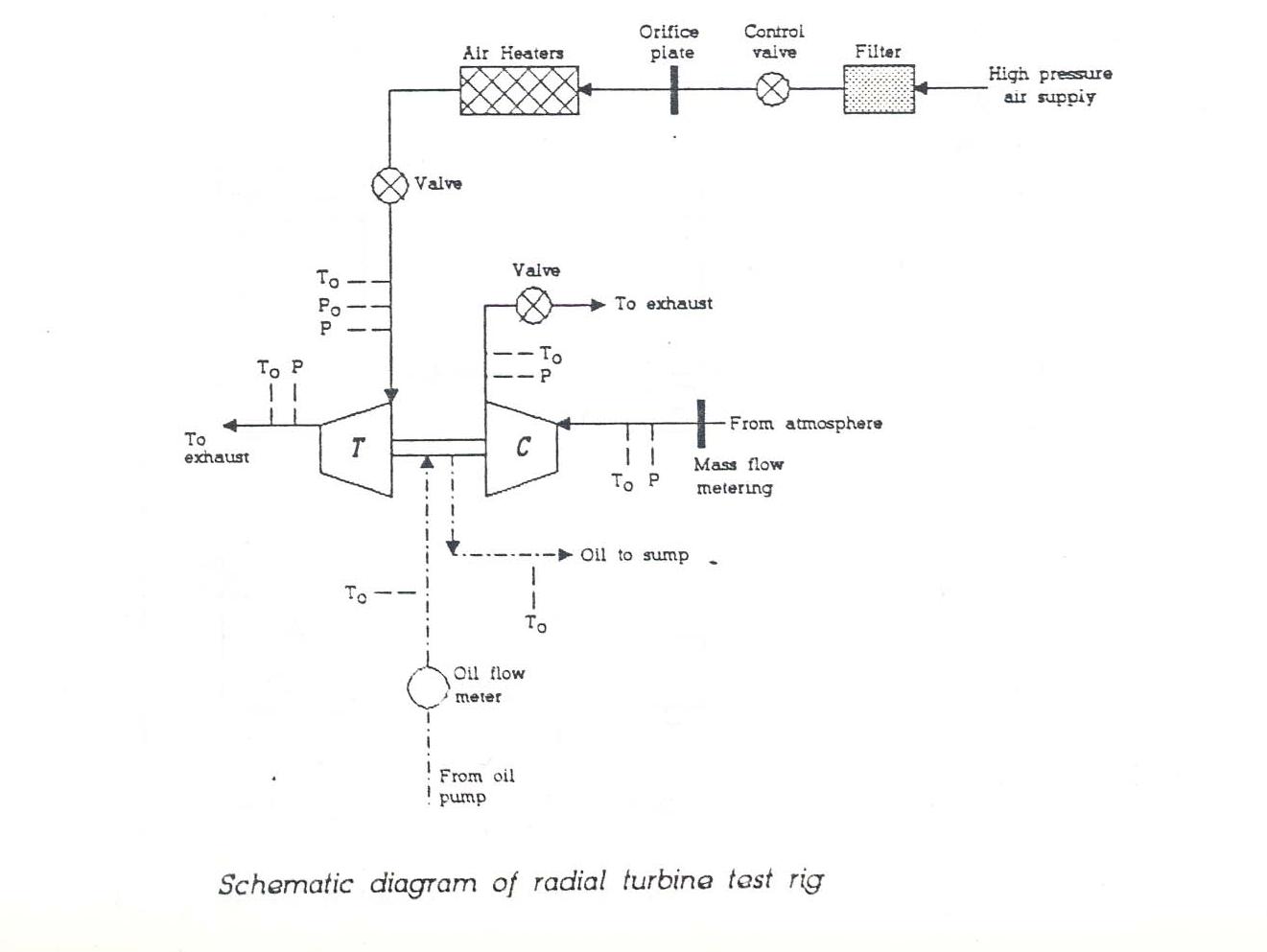

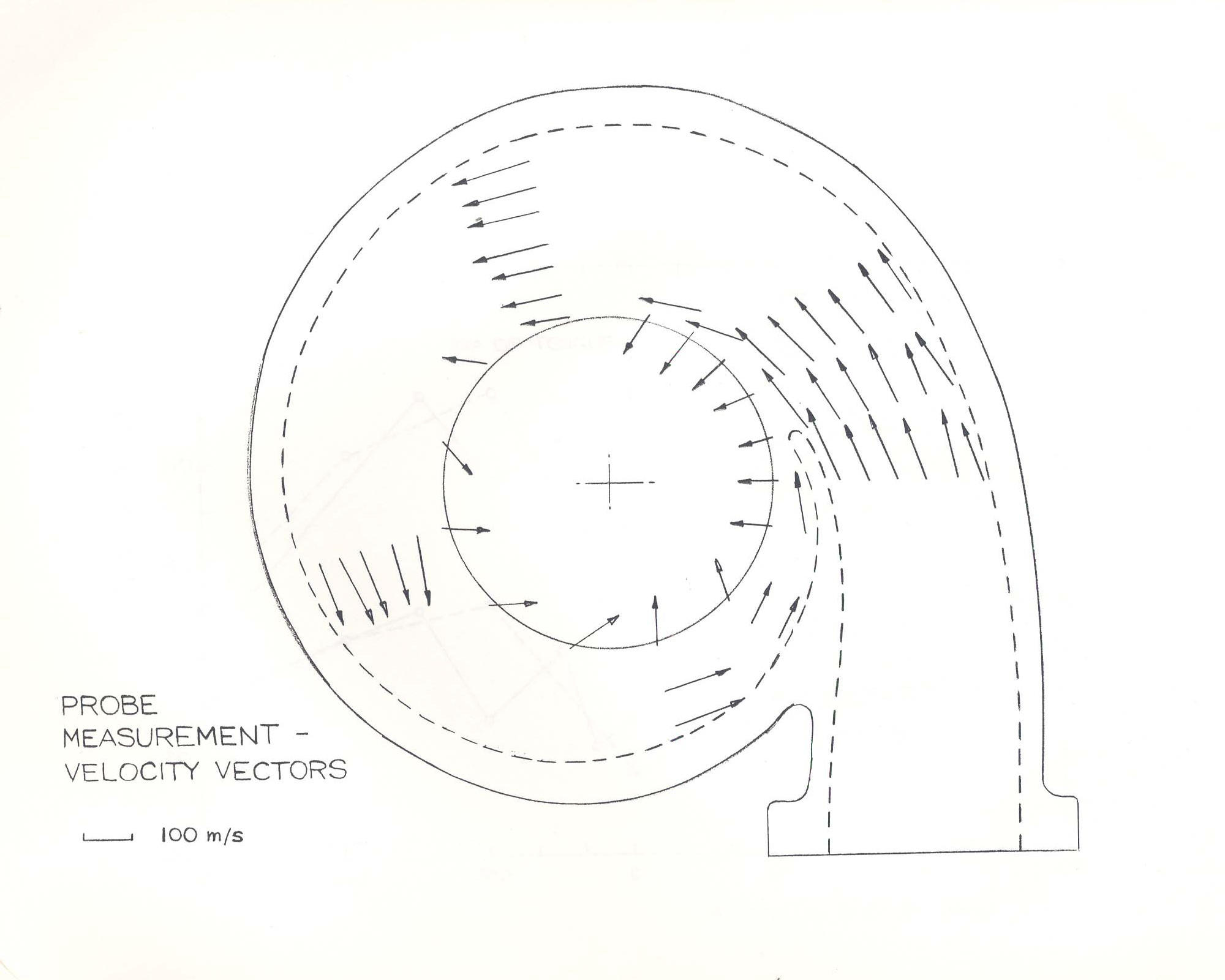

Shown below are examples of the computation for a scroll volute and the turbocharger test facility.
